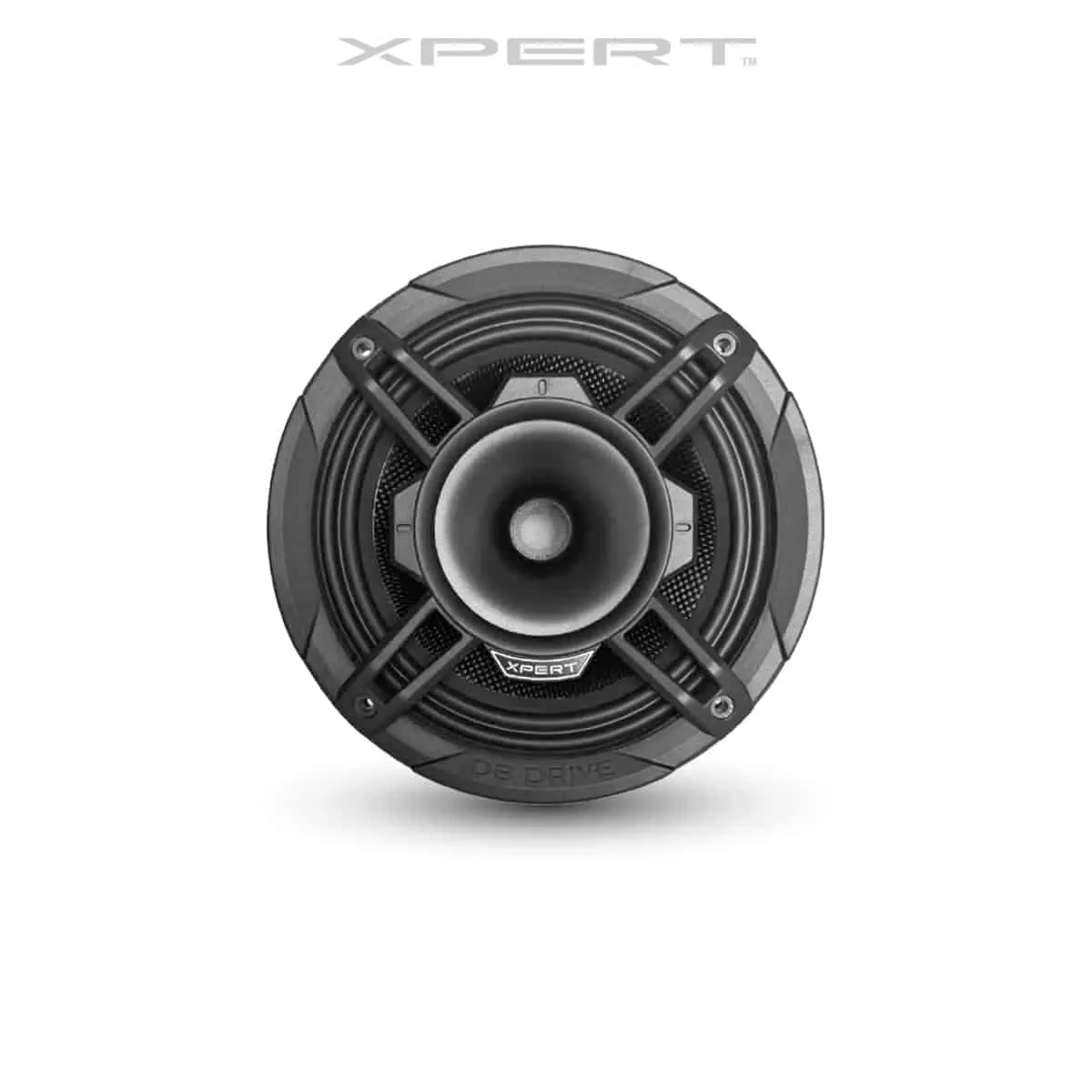

- 8″ 2-Way Carbon Fiber Loudspeaker

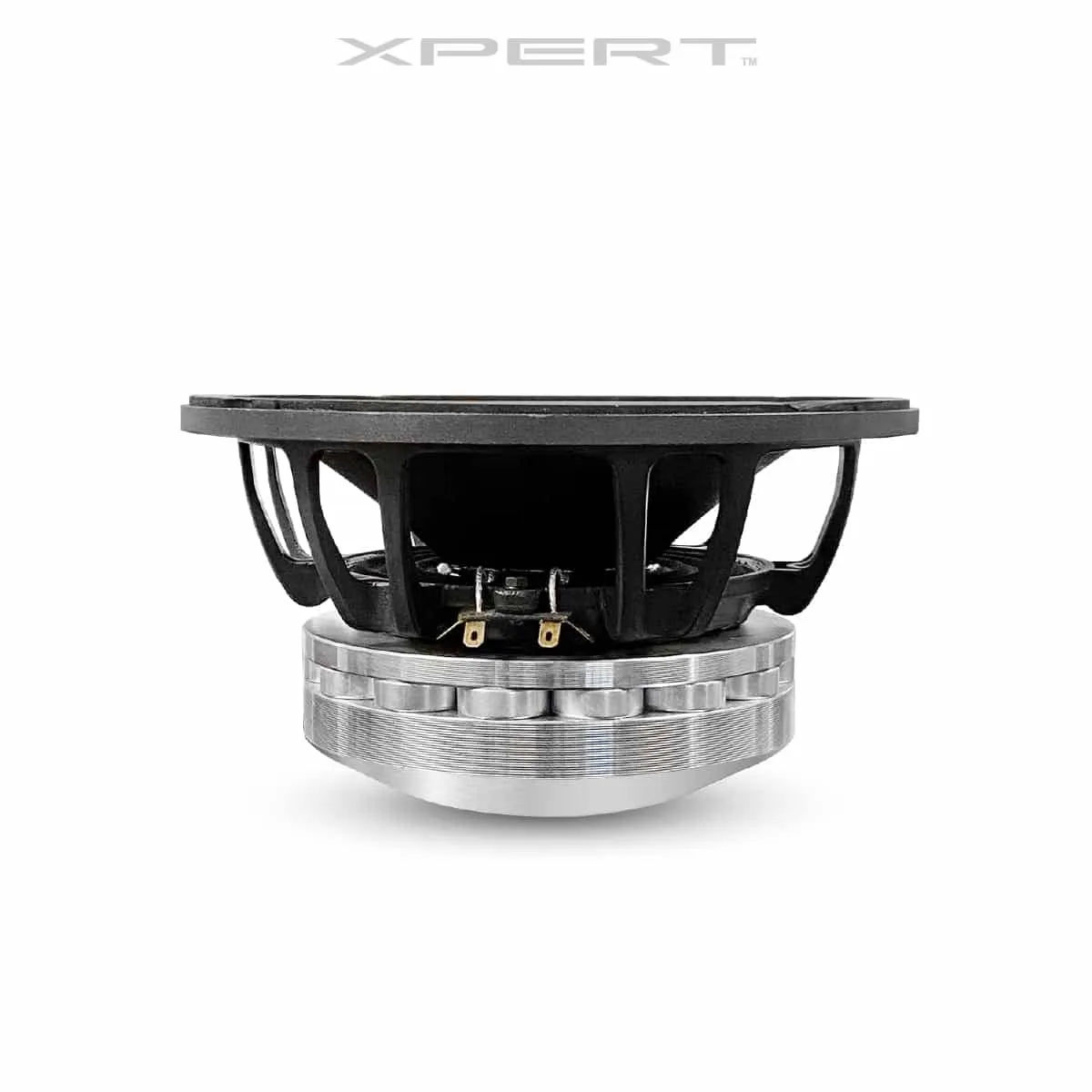

- Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP54 Rated Weather Resistant Carbon Fiber Cone
- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

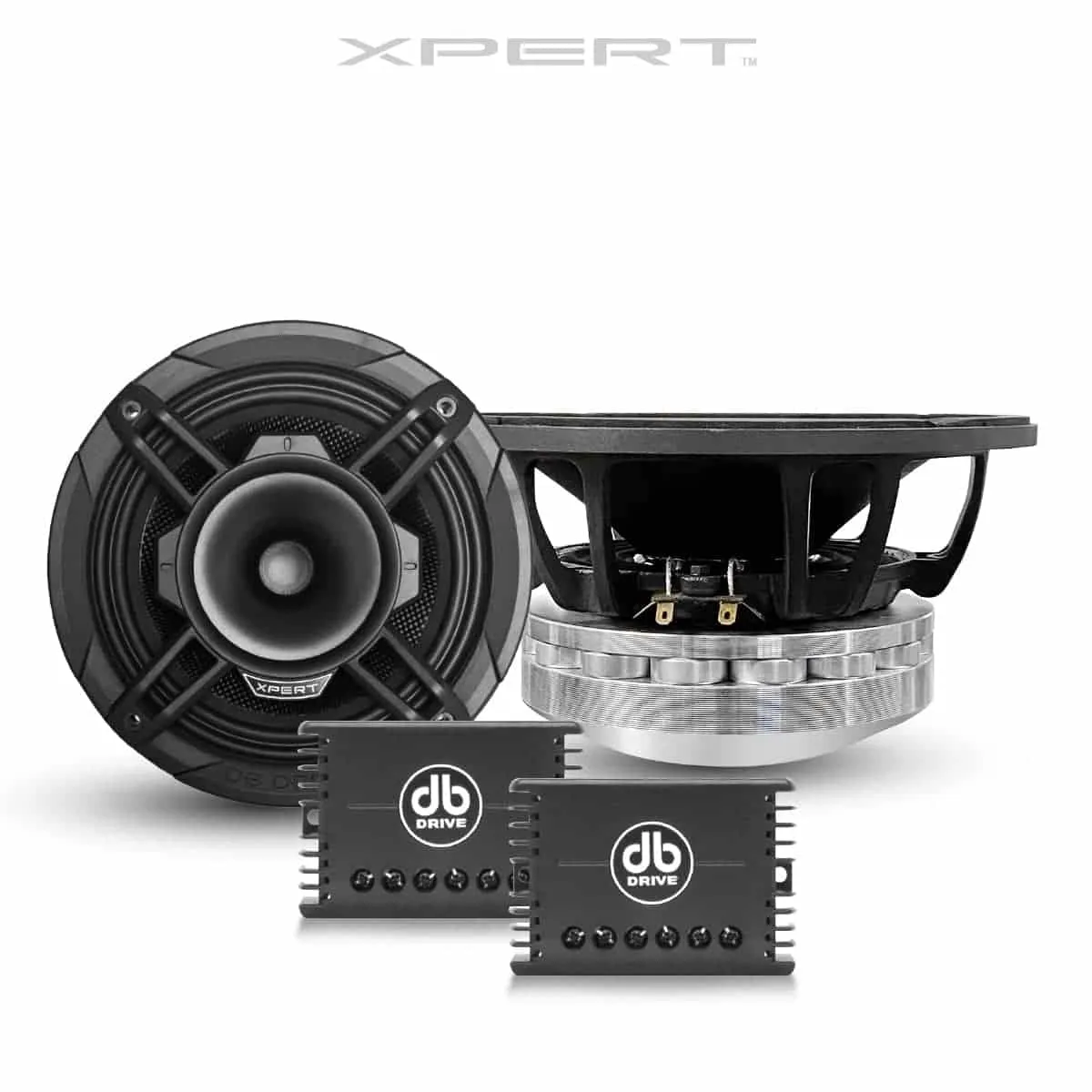

- 12dB Passive Crossover Included
- Protective Grills Included
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 48.1Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 6.62 |
| Electrical Quality Factor (Qes) | 0.43 |
| Total Quality Factor (Qts) | 0.41 |
| Compliance Equivalent Volume (Vas) | 21.0L |
| Mechanical Compliance (Cms) | 0.33 mm/N |
| Efficiency (1W/1M) | 106.3 dB |
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 650 Watts |
| Dynamic Wattage | 1250 Watts |
| Sensitivity (1w/1m) | 106.3 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.57″ (116.3mm) |
| Mounting Diameter: | 7″ (179.64mm) |
