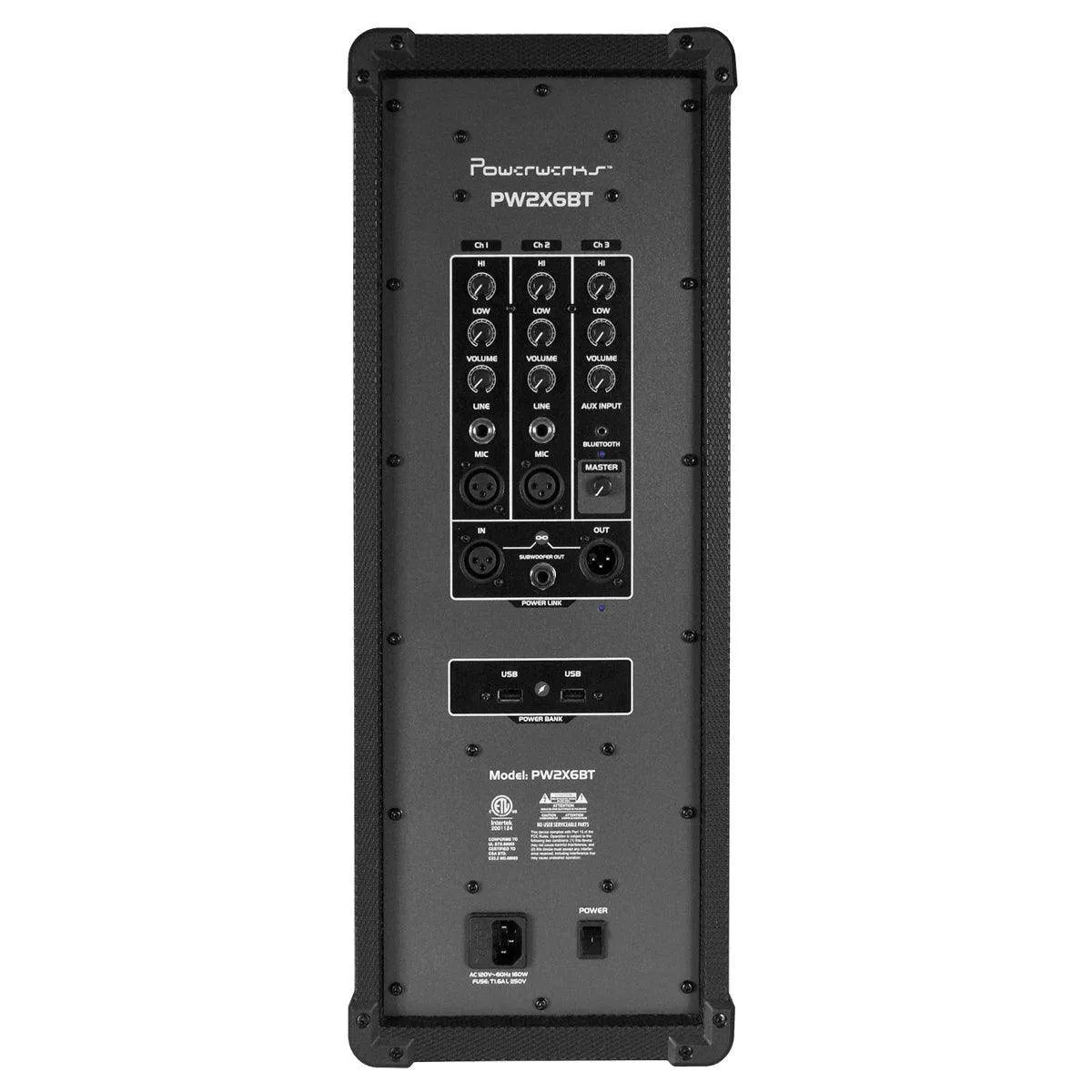

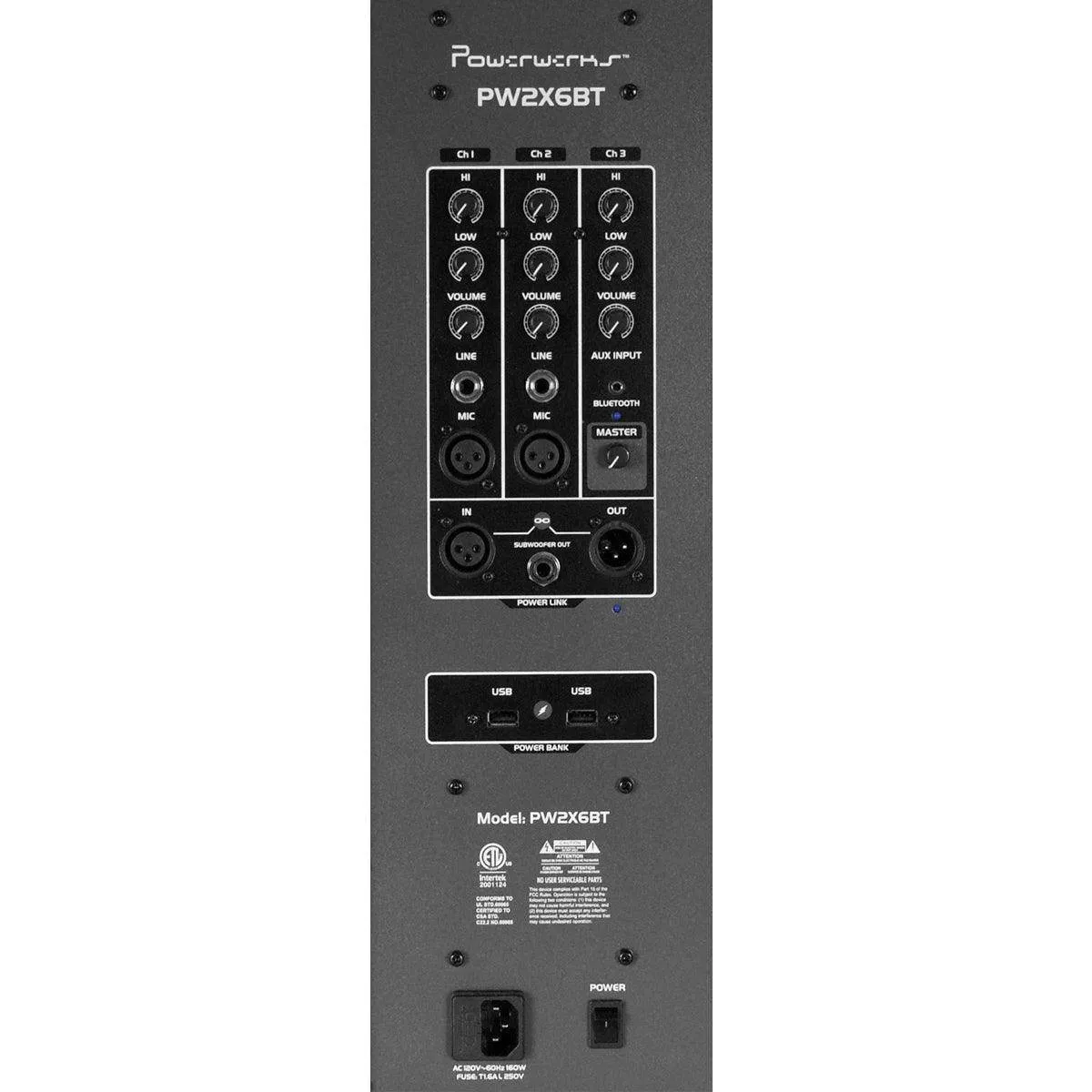

These powered towers have a 3 channel mixer and power amplifier built into the back of the cabinet. The straight forward control panel is easy to navigate even for the novice.
Three input channels with mic, line, aux and Bluetooth® inputs add convenience and flexibility to your live set up. Independent volume controls on each channel and a master control allow you to adjust levels with precision. These controls allow you to bring your sound into focus on each channel. The subwoofer out jack allows bands and DJs to enhance their low end performance by adding a powered sub.
Features • Built-In 3 Channel Powered Mixer • 200 Watts Peak Power • Bluetooth® Connectivity • Powerlink Circuit for system expansion • Powerbank for USB power and charging
Specifications Peak Power Output 200 Watts
Accepted Inputs Channel 1 and Channel 2: Mic XLR Balanced, Line level 1/4 balanced Channel 3: 1/8" Line level or Bluetooth device
Hum -56 dB: Residual noise, all level controls 0% (minimum) -48 dB: Nominal system noise, all level controls at 50% 70 dB: Mic to speaker output (Channel 1 and Channel 2) 56 dB: Line to speaker output (Channel 1 and Channel 2) 42 dB: AUX in to speaker output
Channel EQ (Hi, Low) 4kHz and above, 800Hz and below
Powerlink (IN and OUT) Both jacks accept a balanced input and sends a pre-master volume output mix of channels. Recommended use: Linking two Powerwerks models
SubWoofer Out Line out: 20Hz-150 Hz
Monitor Out Line out: Balanced TRS output with grounded sleeve
Phantom Power 15 V: Mic input (Channel 1 and Channel 2)
Power Requirements Europe: 230VAC/50Hz, 80W Nominal UK: 230VAC/50Hz, 80W Nominal
Speakers 3 x 6", 8 ohm each
Horn 1" Neodymium compression driver
Nominal impedance Not designed for external speakers
Bluetooth Module Features Bluetooth 3.0EDR compliant. Typical 2 dBm Class 2 output power. Audio DAC: 94 dB SNR. A2DP profile support
Top Hat Speaker Connector: 35mm / 1 3/8" diameter
Dimensions 9.4" D x 8" W x 21.7" H / 240mm D x 205mm W x 550mm H
