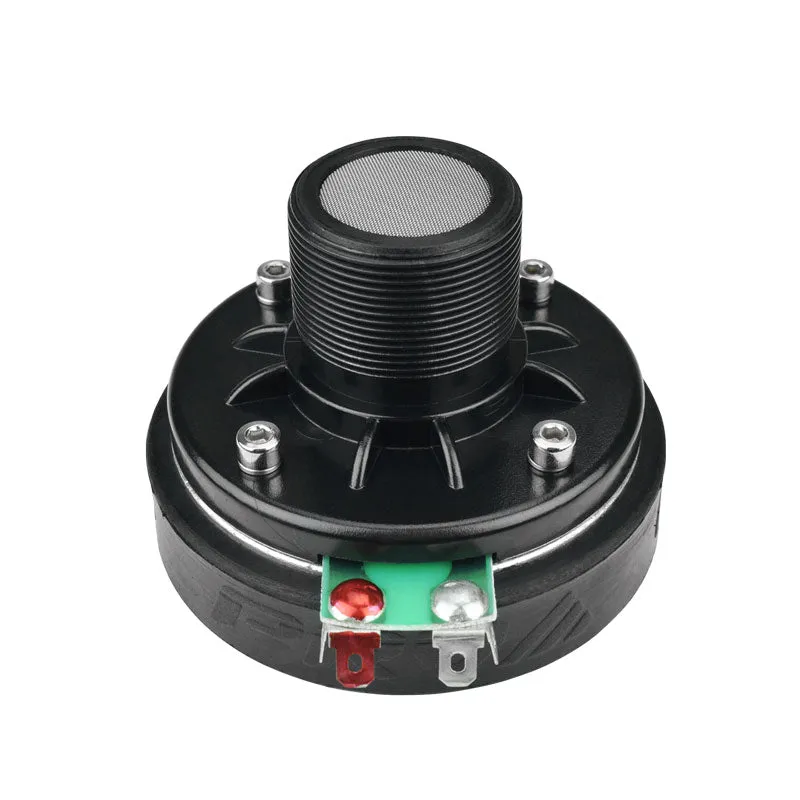

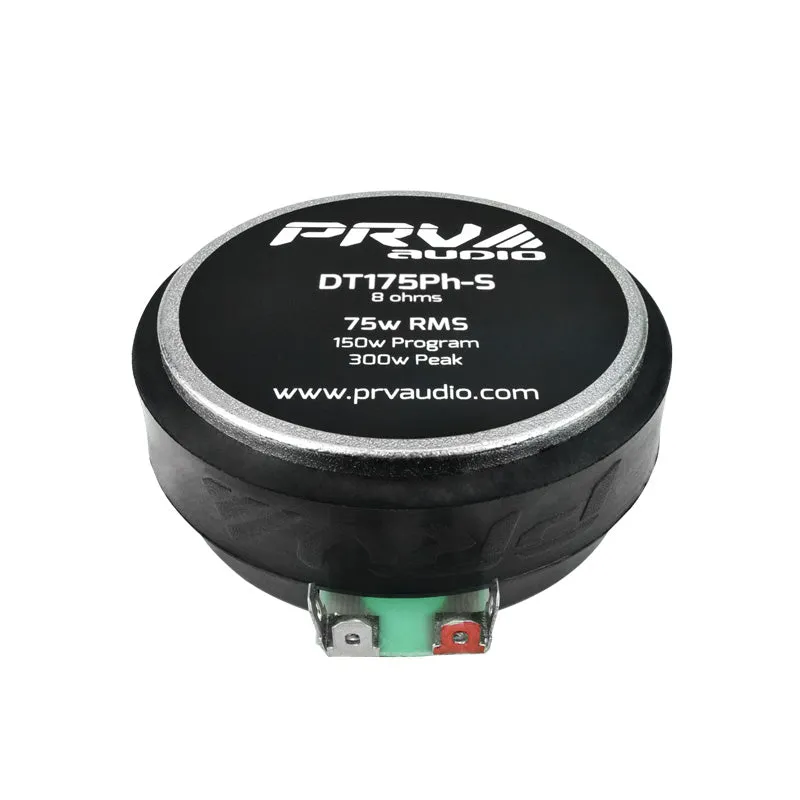

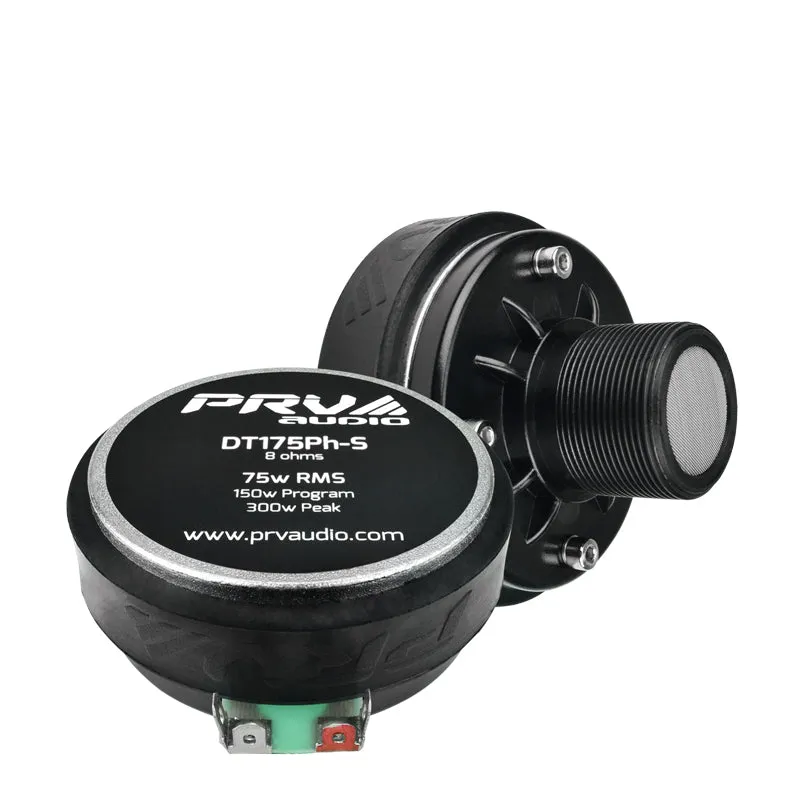

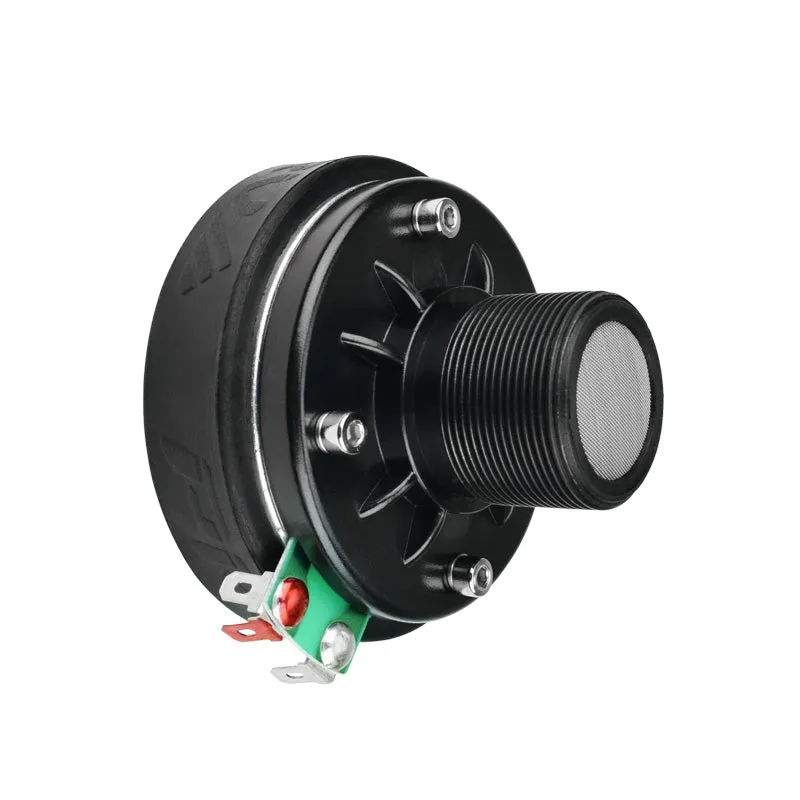

The DT175Ph-S is a lightweight compression driver that weighs just 1.5lbs, and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room.
Highlights
- Throat Diameter: 1″
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 75 Watts
- Program Power: 150 Watts
The DT175Ph-S has a standard 1″ screw-on throat enabling you to quickly replace old worn out or damaged drivers. The most affordable and compact 1″ compression driver from PRV Audio.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1" (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 75 Watts |
| Program Power | 150 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 3000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 – 19,000 Hz |
| Voice Coil Diameter | 1″ (25.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic resin |
| Flux Density | 1.02 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 3.31" (84 mm) |
| Overall Depth | 2.60" (66 mm) |
| Mounting Thread | 1 3/8" 18 TPI |
| Net Weight | 1.73 lbs (0.79 kg) |
| Shipping Weight | 1.85 lbs (0.84 kg) |
| Carton Dimensions W x L x H | 4.53" x 4.53" x 3.31" (115 x 115 x 84 mm) |
